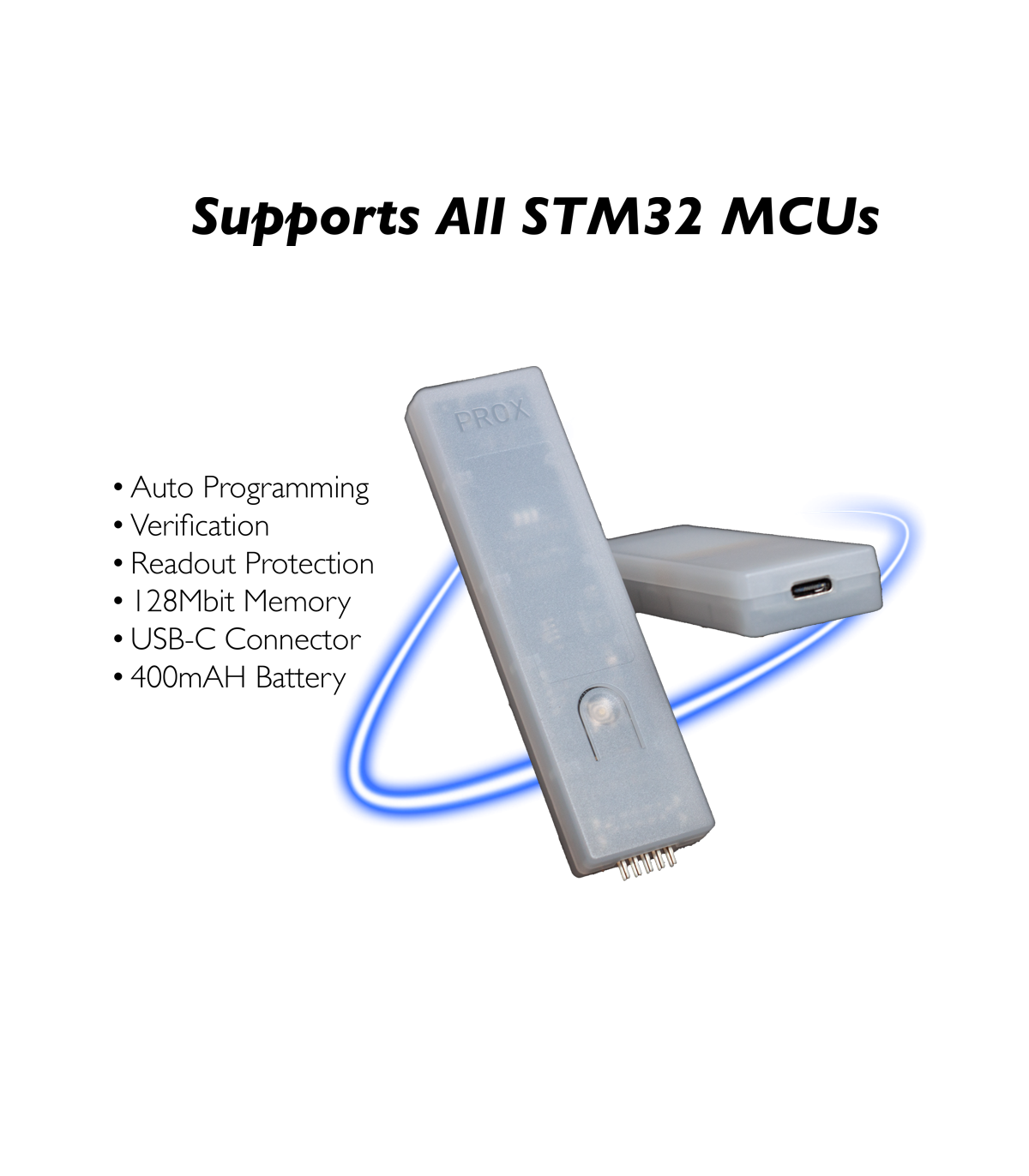

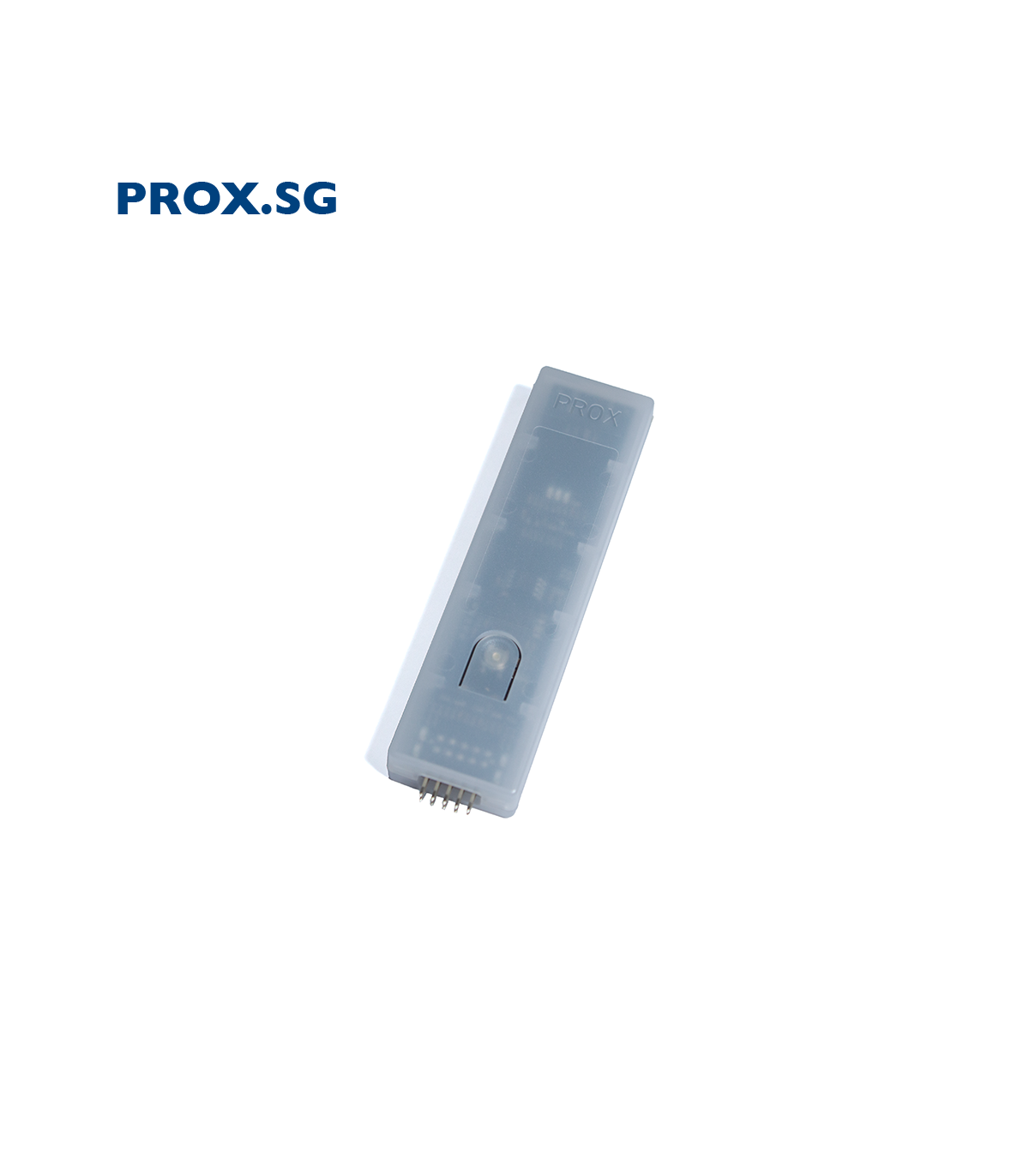

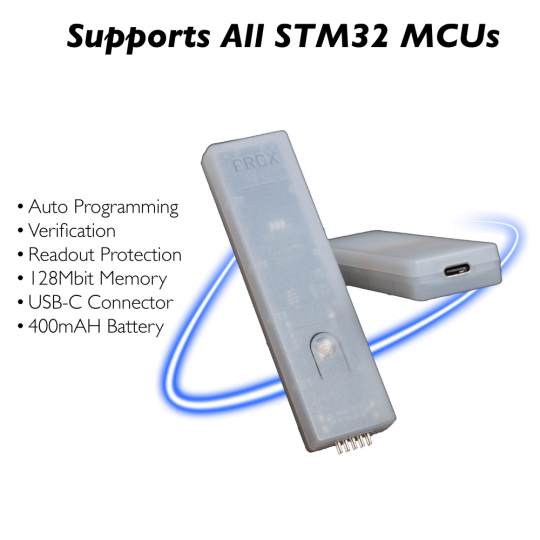

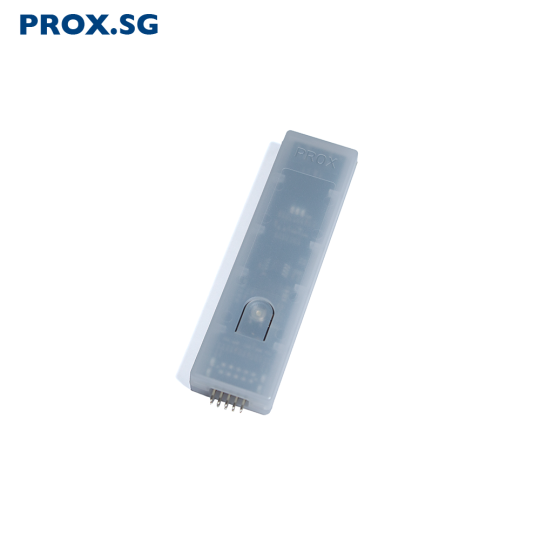

Autonomous hand-held flash programmer for STM32 MCUs.

Read moreShow less
$249.00
Memory Size
  • 16 Mbit (USD $248)
  • 64 Mbit (USD $249)
  • 128 Mbit (USD $299)
Reference:
Product Details

Autonomous hand-held flash programmer for STM32 MCUs.

Fast and simple production programmer for small and medium volume manufacturing (from samples to thousands).

Auto verification, recovery, reflashing.

Internal flash memory 128Mbit.

Rechargeable lithium battery 400mAh - large enough for whole working day.

Type-C connector for fast charging and data transfer.

  • STM32F101/2/3: STM32F101, STM32F102, STM32F103 medium density
  • STM32F205/07/15/17: STM32F205, STM32F207, STM32F215, STM32F217
  • STM32F101/2/3: STM32F101, STM32F102, STM32F103 low density
  • STM32F405/07/15/17: STM32F405, STM32F407, STM32F415, STM32F417
  • STM32F101/3: STM32F101, STM32F103 high-density
  • STM32L4x1/STM32L475xx/STM32L476xx/STM32L486xx
  • STM32L100x8/STM32L100xB/STM32L15xx6/STM32L15xx8/STM32L15xxB
  • STM32L05x/ STM32L06x/ STM32L010
  • STM32F105, STM32F107 connectivity line
  • STM32F42x, STM32F43x
  • STM32F100 low/medium density value line
  • STM32F446
  • STM32F303xB, STM32F303xC, STM32F358, STM32F302xB, STM32F302xC
  • STM32F401xB, STM32F401xC
  • STM32L03x, STM32L04x, STM32L010
  • STM32L100xC, STM32L15xxC, STM32L162xC
  • STM32F100 high-density value line
  • STM32L100x6xxA, STM32L100x8xxA, STM32L100xBxxA, STM32L15xx6xxA
  • STM32L15xx8xxA, STM32L15xxBxxA
  • STM32F101, STM32F103 XL-density
  • STM32F411
  • STM32F37xx
  • STM32F401xD, STM32F401xE
  • STM32F469, STM32F479
  • STM32L43xxx, STM32L44xxx
  • STM32L15xxD, STM32L162xD
  • STM32L15xxE, STM32L162xE
  • STM32F303x6, STM32F303x8, STM32F328, STM32F334
  • STM32F301x6, STM32F301x8, STM32F302x6, STM32F302x8
  • STM32F05x, STM32F030x8
  • STM32F412
  • STM32F09x, STM32F030xC
  • STM32C01x
  • STM32F03x
  • STM32F04x, STM32F070x6
  • STM32F302xE, STM32F303xE, STM32F398xx
  • STM32L07x, STM32L08x, STM32L010
  • STM32F07x
  • STM32C03x
  • STM32G051, STM32G061
  • STM32L01x, STM32L02x
  • STM32F410
  • STM32G07x, STM32G08x
  • STM32L496xx, STM32L4A6xx
  • STM32L45x, STM32L46x
  • STM32F413, STM32F423
  • STM32L41x
  • STM32G03x, STM32G04x
  • STM32G0B0xx, STM32G0B1xx, STM32G0C1xx
  • STM32G43x, STM32G44x
  • STM32G47x, STM32G48x
  • STM32L4Rxxx, STM32L4Sxxx
  • STM32L4Pxxx, STM32L4Qxxx
  • STM32G491xC, STM32G491xE
  • STM32WB1xxx
  • STM32WB5x, STM32WB35xx
  • STM32WB35xx
  • STM32WLxx
  • Supported but not yet tested
  • STM32F74x, STM32F75x
  • STM32F76x, STM32F77x
  • STM32F72x, STM32F73x
  • Not yet supported (in progress):
  • STM32H7xx
  • STM32U535, STM32U545
  • STM32L5xx
  • STM32H50x
  • STM32H7A, STM32H7B
  • STM32U5xx
  • STM32U575, STM32U585
  • STM32H72x, STM32H73x
  • STM32H5xx
  • STM32WBA52, STM32WBA54, STM32WBA55
  • STM32V8xx
  • STM32MP15xx
  • STM32MP13xx
  • STM32MP25xx
  • Hex-file can only be written to internal FLASH memory
  • The current version of programmer CAN’T write to System area, Option bytes, RAM and EEPROM
  • We didn’t test writing to the second bank of MCUs with Dual Flash Banks
  • Can only disable RDP Readout Protection when needed for flashing, other protection features not supported
Read moreShow less
Product Details
Download
PROX-PROG Manual
Autonomous hand-held flash programmer for STM32 MCUs.
Download (850.25KB)
